Stand-alone Gigabit Ethernet Media and Rate Converter

SGFEB Series

The SGFEB Series of media converters allows you to connect different types of networking equipment together. It converts the copper cable that is commonly used in Ethernet networks to a fiber optic cable, which is used in faster networks. This allows you to integrate fiber optic cabling into your existing copper network. It works at a higher level of networking, known as Layer 2, which means that it not only converts the type of cable, it also allows older devices that work at a slower speed to connect to the newer and faster fiber optic devices.

Download Datasheet
Request Quote
In August 2021, Transition Networks was acquired by Lantronix Inc. The products of Transition Networks will continue to be available from CoverTel as usual. Logo change of products from Transition Networks to Lantronix will be done progressively.
Category: Tag:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

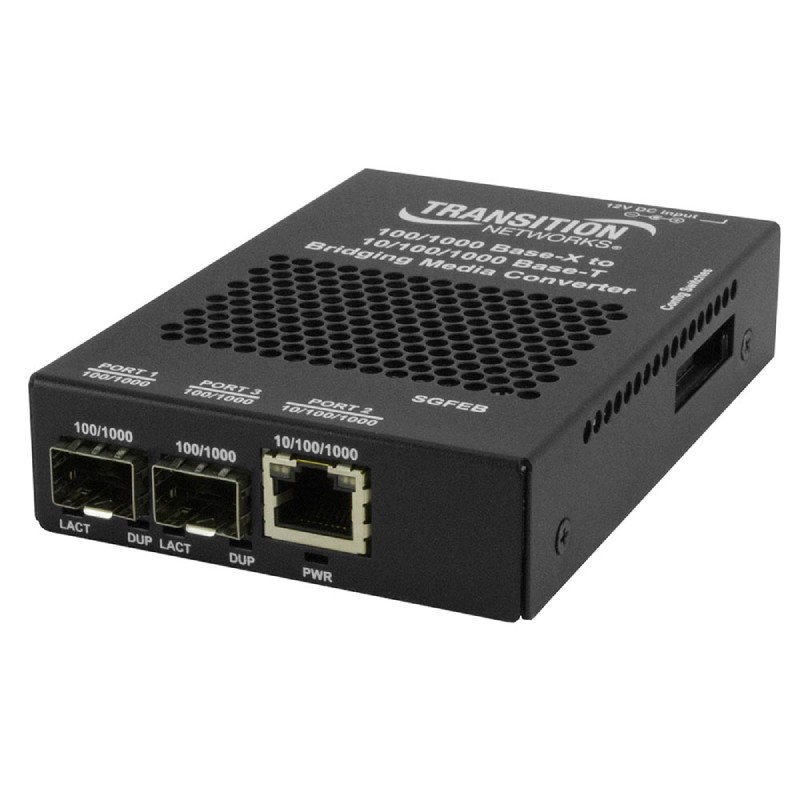

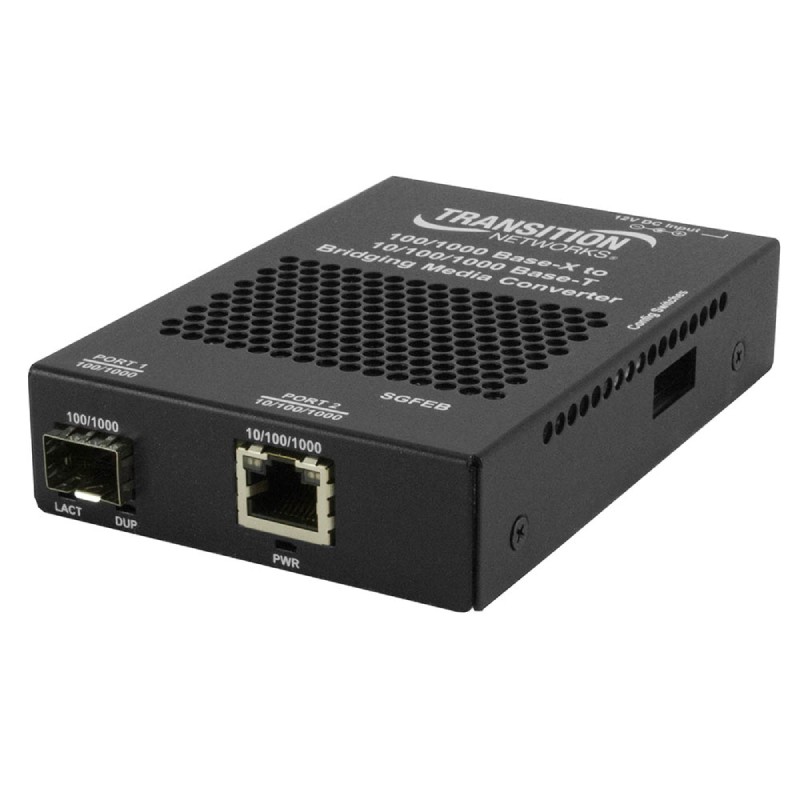

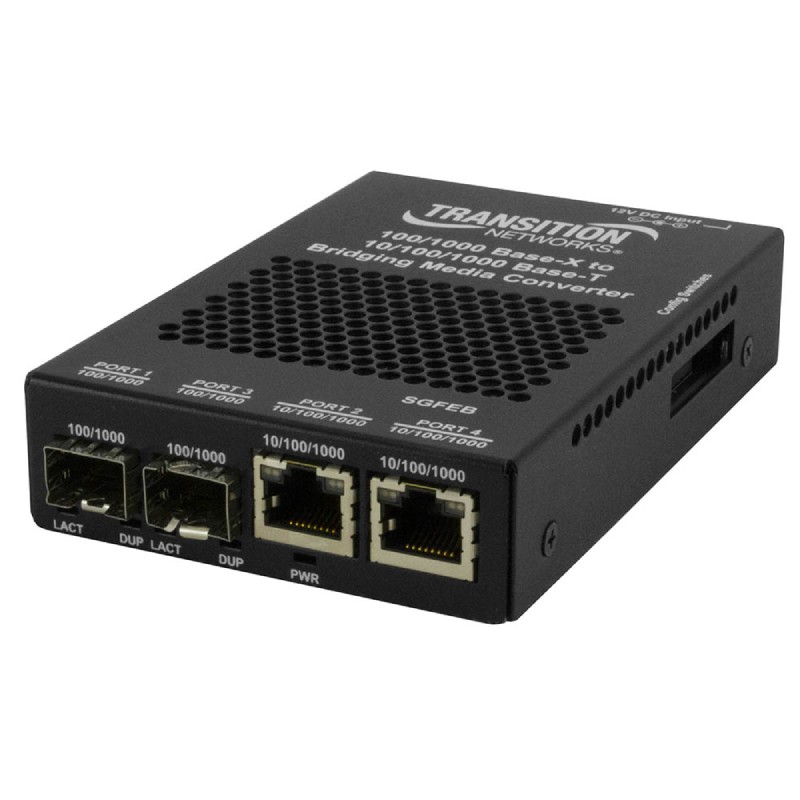

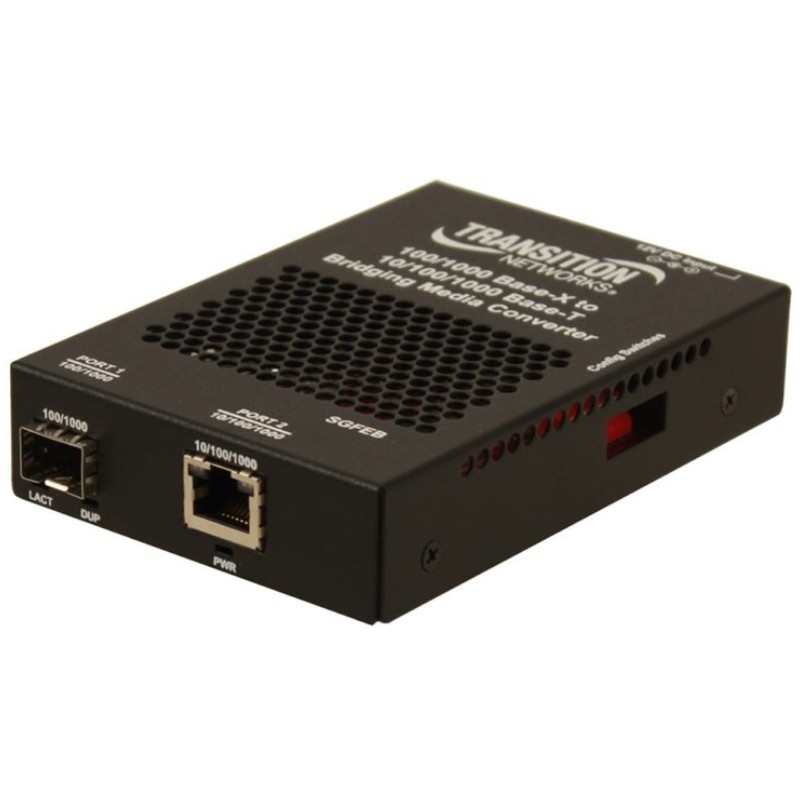

Stand-alone Gigabit Ethernet Media and Rate Converter
10/100/1000Base-T to 1000Base-SX/LX
SGFEB Series

The SGFEB Series of media converters connects different types of networking equipment together, specifically it connects 10/100/1000Base-T ports to 1000Base-SX/LX ports, this makes it possible to use fiber optic cabling in environments that use copper cabling. It operates on the second layer of networking, known as Layer 2, which is the data link layer. This converter not only changes copper to fiber but also allows connecting legacy devices that use 10/100 copper to 1000Base-SX/LX fiber.

Key Features and Benefits:

  • Extend Network Distance
  • Bridge legacy 10/100 devices to a Gigabit backbone
  • Protect critical networks with fiber redundancy
  • Auto-Negotiation (copper and fiber ports)
  • Switch-selectable speeds (UTP) when Auto-Negotiation is off
  • AutoCross™
  • Pause
  • Far-End-Fault (100Base-FX setting on -180 model port 1 only)
  • Automatic Link Restoration
  • Fiber Redundancy (
  • SGMII support on port 1 for use with 10/100/1000Base-T copper SFPs (-180 model only)
  • 100/1000Base-X, dual speed support on port; 1 for use with 100Base-FX or 1000Base-SX/LX SFPs
