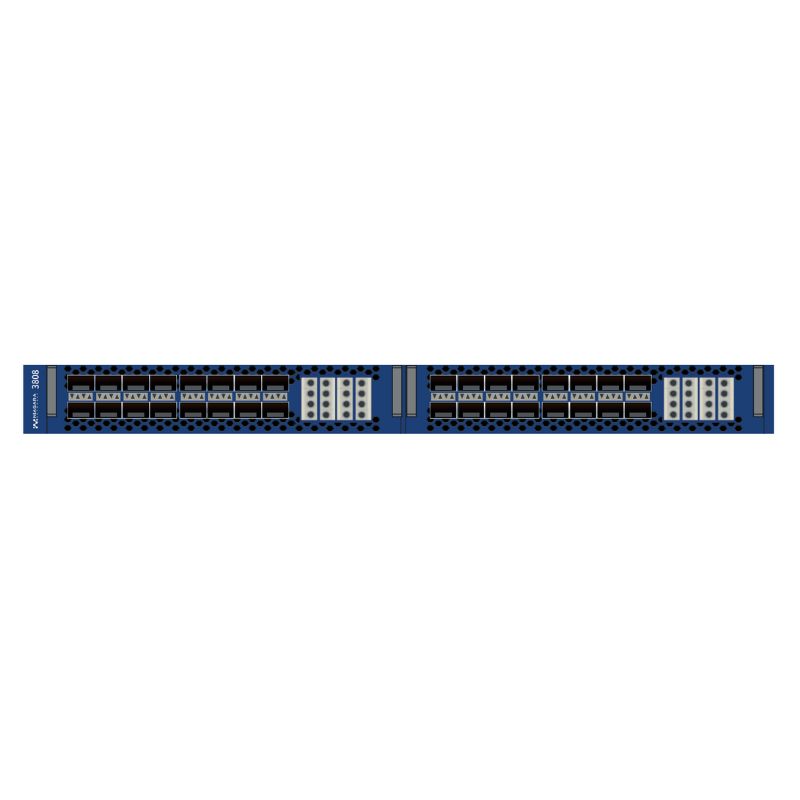

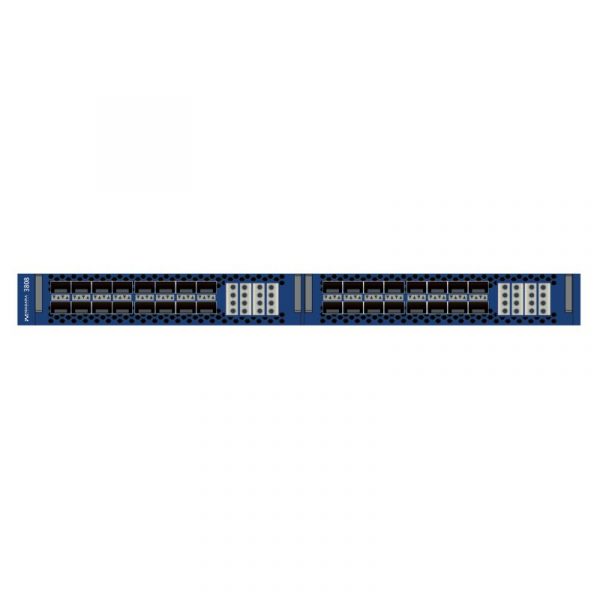

3808E Multifunctional Hybrid Packet Broker

Carrier-Grade Bypass Packet Broker

The 3808E network bypass device is part of the Niagara Networks’ BypassP2 carrier grade product line. It’s designed to support up to two double bay field-replaceable modules, each with up to four bypass segments and integrated additional monitoring ports. This high level of flexibility allows the 3808E to be configured with up to eight 1/10/25/40/100Gb bypass segments, providing the ability to redirect traffic around network devices or links that are experiencing issues. The 3808E also includes active TAP (Test Access Point) versatility and multifunctionality, which allows for the monitoring and analysis of network traffic. Bypass devices are used to improve network reliability and availability by allowing traffic to be redirected around faulty or congested devices or links. They are commonly used in critical infrastructure such as telecommunications, data centers, and financial systems, where the impact of a network outage can be significant.

Download Datasheet
Request Quote

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

3808E Multifunctional Hybrid Packet Broker

The Niagara Networks 3808E Hybrid Packet Broker solution offers one of the highest 40/100Gb segment densities currently available on the market today. This multifunctional solution increases operational efficiency and the high availability of complex inline cybersecurity tools, enabling organisations to better protect their networks and critical infrastructure.

Key Features and Benefits

High Density

  • Up to 8 network links (bypass segments or active TAP segments for maximum flexibility)
  • Up to 2 modules each with 24 ports (48 ports per chassis)

Multifunctional Segments

  • Network ports support SX/SR, LX/LR and BiDi
  • Multi0rate interfaces – 1/10/25Gb
  • 40/100Gb high-speed 2 or 4 bypass segments
  • Bypass for inline deployments
  • Failsafe optical protection (<50ms)
  • Configurable packet heartbeat (ms resolution)
  • Active TAP split mode
  • Active TAP aggregate mode

Integrated Monitoring/TAP Ports per Module

  • Up to 4 bypass segments and 16 packet broker ports

Management

  • Robust command line interface (CLI)
  • User-friendly, web-based user interface
  • REST API for third-party integration
  • Managed by Niagara Visibility Controller (NVC)

Form Factor

  • Compact 1U Rackmount
  • Field-replaceable power supply redundancy

Fabric Flow™

FabricFlow™ technology exposes network packet broker features enabling the user to map traffic from one segment to any other segment (or from one port to any other port). The fully featured network packet broker functionality includes:

  • Aggregate traffic to single port
  • Replicate traffic to multiple ports
  • Sophisticated ingress/egress filtering – L2-L4, User Defined Byte
  • Flexible session-aware load balancing schemes
  • High-availability between primary and secondary bypass segments – combined with NPB Policy
