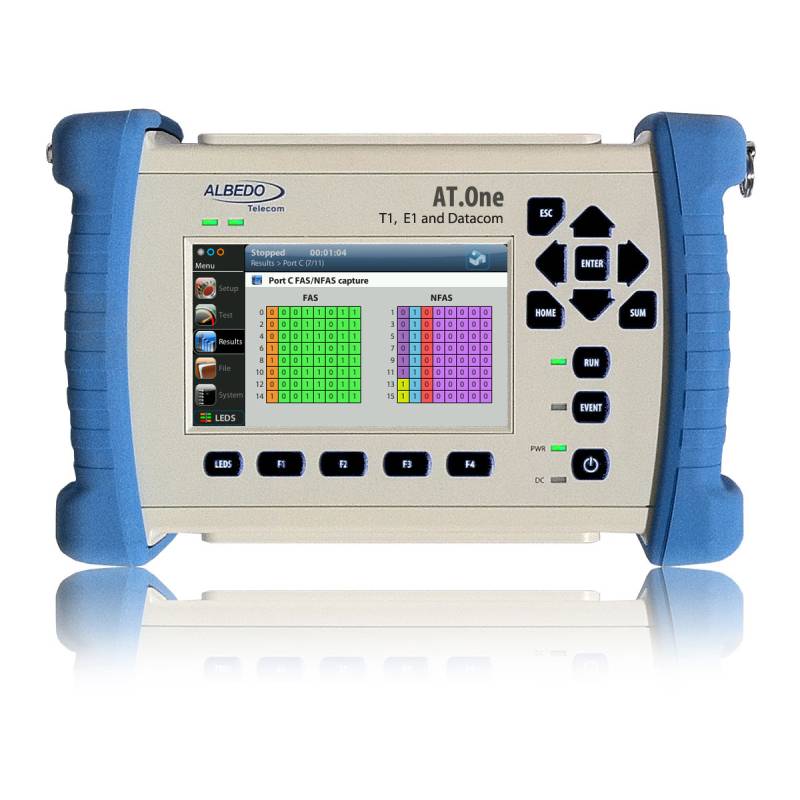

AT.One T1-E1-Datacom Tester

T1, E1, Datacom, Wander, VF, FRL tester

The AT.One is a powerful and versatile BER analyser/generator designed for field engineers involved in installing, commissioning, and troubleshooting T1/E1 and Datacom circuits. Manufactured by ALBEDO Telecom in Europe, this handheld analyser offers top performance, high accuracy, and competitive pricing. Its features include framed and unframed signaling, Nx64Kbps drop and insert, data and jitter analysis, and a comprehensive range of T1 and E1 line status, transmission events, performance testing, BERT, monitoring, remote control, and configurations. With its user-friendly interface, rugged design, and advanced FPGA technology, the AT.One provides unmatched accuracy and performance in T1, E1, Datacom, Jitter, and Wander testing. It is an ideal solution for network operators, contractors, and enterprise users managing T1, E1, and Datacom backhaul circuits.

Request Quote
Available for short term rentals. Rent it Today
Categories: , Tag:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

AT.One T1-E1-Datacom Tester

The AT.One is the ultimate tester designed specifically for field engineers who are involved in the installation, commissioning, and troubleshooting of T1/E1 and Datacom circuits. It is a powerful and fully-featured tester that offers top performance, high accuracy, and a competitive price.

Key Features:

  • Simple to use: The AT.One analyzer is equipped with a full-color GUI specifically designed for field use, making it easy to analyze and maintain telecom circuits.
  • Comprehensive performance: It supports framed and unframed signaling, drop and insert Nx64Kbps, data and jitter into any time slot.
  • Variety of testing capabilities: It provides a wide range of T1 and E1 line status, transmission events, performance testing, BERT, monitoring, results, remote control, and configurations.
  • Compact and rugged: The AT.One comes in a compact case and is designed to be friendly and rugged, suitable for field use in any network topology.

Benefits:

  • High-quality testing: The AT.One is a first-class tester designed and manufactured with the latest components in the industry, ensuring excellent performance and accuracy.
  • Versatility: It is suitable for network operators, contractors, and enterprise users managing fixed and mobile networks using T1, E1, and Datacom backhaul circuits.
  • Easy to use: With its user-friendly interface and intuitive design, minimal training is required for installation and commissioning.
  • Reliable performance: The AT.One provides comprehensive reporting and generates all events to verify circuit performance, ensuring a healthy support for customer applications.
  • Future-proof: The AT.One is designed to meet the evolving needs of the testing market, including traditional voice and data applications as well as new architectures combining T1, E1 circuits with Carrier-Ethernet and IP.

Specifications:

  • Connectors: The AT.One is equipped with various connectors, including line and frame connectors, analog audio port, and multiple interfaces such as V.24/RS232, V.11/X.24, V.35, V.36/RS449, and G.703.
  • Operation: It supports multiple connection modes and offers bidirectional testing capabilities.
  • Miscellaneous: The AT.One features a touchscreen TFT display, long-lasting rechargeable batteries, and operating temperature and humidity ranges suitable for field use.

Applications:

  • T1, E1 testing: The AT.One is designed for testing and maintaining T1 and E1 circuits in various applications, including voice, data, synchronization, leased lines, and more.
  • Voice and Data: It supports the legacy telecom solutions widely used for voice applications and handles up to 23/31 voice conversations simultaneously.
  • Earth-to-earth communications: The AT.One facilitates the transportation of audio signals and data using compression techniques over T1, E1 lines.
  • Synchronization: It helps maintain synchronous timing and frequency in mobile networks using T1, E1 backhaul connections.
  • TDM emulation: The AT.One ensures the transparent transport of T1, E1 TDM traffic across packet-switched networks using circuit emulation techniques.

Users:

  • T1 and E1 installers
  • Mobile base stations
  • Fixed line operators
  • Datacom maintenance
  • Electrical power utilities
  • Air traffic control
  • Frame Relay service
  • Synchronization networks
  • Defense links
  • Airport channels, railways, power utilities, data links, leased lines, and more.
