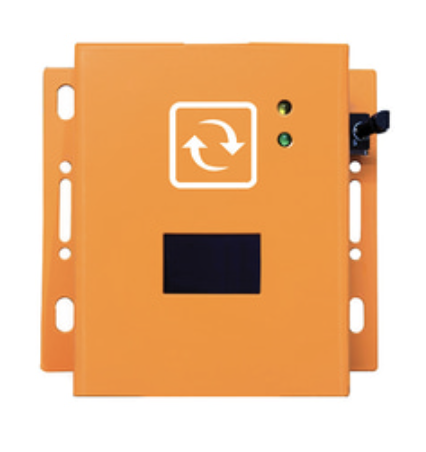

SensorGateway Base Unit (BASE-5)

Industrial sensor platform for monitoring critical infrastructures

TheSensorGateway is a versatile stand-alone IP-based temperature sensor that offers comprehensive monitoring capabilities and serves as the base unit for InfraSensing’s Monitoring Solution. Customers can add other network and power connectivity options to the base units with the optional add-on module. With built-in alerting features and a user-friendly web interface, it allows you to monitor temperatures accurately and conveniently. It requires by default a network cable and 12v DC or POE power input with network-based alerting. The Cellular Alerting & GPS modules enable you to receive alerts even when your IP network is down and provides location data. TheSensorGateway supports industrial protocols, such as SNMP and Modbus TCP, and offers flexible connectivity options. Its compact design, low power consumption, and industrial-grade reliability make it a reliable choice for temperature monitoring in various settings.

Download Datasheet
Request Quote
CoverTel is a Partner of InfraSensing and is authorized to resell and provide services for InfraSensing sensors and ServersCheck Monitoring platform.
SKU: Base-5 (Base-Wired) Category:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

The ideal choice to meet your monitoring needs with precision and ease

The SensorGateway is a versatile and reliable stand-alone IP-based temperature sensor designed to meet your monitoring needs. Whether you require temperature monitoring for industrial settings or want to keep an eye on your home environment, the SensorGateway provides a comprehensive solution with its impressive features and benefits:

Key Features and Benefits:

  • No software or PC needed: The SensorGateway operates independently, eliminating the need for additional software or a computer.
  • Onboard temperature sensor: It comes equipped with a built-in temperature sensor, allowing you to measure temperatures accurately.
  • Built-in web server: Access the SensorGateway’s interface through its built-in web server for easy configuration and monitoring.
  • Alerting options: Stay informed with alert notifications sent via email, voice call, or SMS, ensuring you never miss critical temperature changes.
  • Industrial protocols: The SensorGateway supports SNMP and Modbus TCP, making it compatible with industrial systems.
  • Web API protocols: It also supports JSON and XML protocols, enabling seamless integration with web applications.
  • Flexible network options: Connect the SensorGateway via DHCP or assign a static IP to suit your network requirements.
  • Power options: Choose between PoE (Power over Ethernet), an optional AC adapter, or USB power adapters for convenient power supply.
  • Mounting options: The SensorGateway is OU and DIN mountable, providing flexible installation choices.
  • Ultra low power usage: With a power consumption of less than 0.5W, it ensures efficient energy usage.
  • Stand-alone device: The SensorGateway operates independently, without the need for constant internet connectivity or additional software.
  • Fully responsive web interface: Its user-friendly web interface adapts to various devices, including desktops, tablets, and smartphones.
  • Enhanced security: Customise your firewall settings for increased security, protecting your data from unauthorised access.
  • Industrial-grade reliability: UL Listed, FCC, and CE certified, the SensorGateway is built to withstand demanding environments.



Technical Specifications:

TCP/IP: Supports IPv4 at 10/100 Mbps for seamless network integration.
Power Source: Choose between PoE (IEEE 802.3af), BASE-PWR (optional AC power adapter), or BASE-PWR-USB (USB power adapter) based on your preferences.
Power Usage: With sensors detached, the SensorGateway consumes 1500mW of power.
Network Data Transfer: Supports SNMP GET (50 – 130 bytes) and SNMP Trap (143 – 280 bytes) for efficient data transmission.
Built-in Features: The SensorGateway includes a web server, SNMP v1, v2 & v3 (MD5/AES), and Modbus TCP for comprehensive monitoring capabilities.
Alerting Options: Receive alerts via email, SMS over IP, or SNMP Traps to stay informed about temperature changes.
External Sensor Probes: Connect up to 2 sensor probes using straight RJ45 CAT6/7 cable with a maximum distance of 100m or 330ft (subject to cable quality and interference).
Max Distance to Switch: CAT6/CAT7 cables support distances up to 100m or 300ft.

Built-in Temperature Monitoring Sensor Specifications:

Temperature Resolution: Achieve precise temperature measurements with a resolution of 0.1°C / 0.18°F.
Temperature Reading: Monitor temperatures ranging from -55°C to +125°C (-67°F to +257°F), with the BASE-5 operating up to 75°C / 167°F.
Temperature Accuracy: Enjoy accurate temperature readings with a tolerance of ± 1°C (± 2°F) over the temperature range of 0°C to +75°C / 32°F to 167°F.

Environmental and Physical Specifications:

Operating Temperature Range: The SensorGateway is designed to operate within a temperature range of 0°C to +75°C (+167°F).
Humidity: It is suitable for environments with humidity levels below 90% rH (non-condensating), ensuring reliable performance.
Dimensions: SensorGateway has compact dimensions of 95 mm (3.7″) x 88 mm (3.4″) x 21 mm (0.8″), allowing for easy installation in various settings.
Weight: With a weight of only 0.21 kg (0.46 lbs), the BASE-5 is lightweight and easy to handle.
