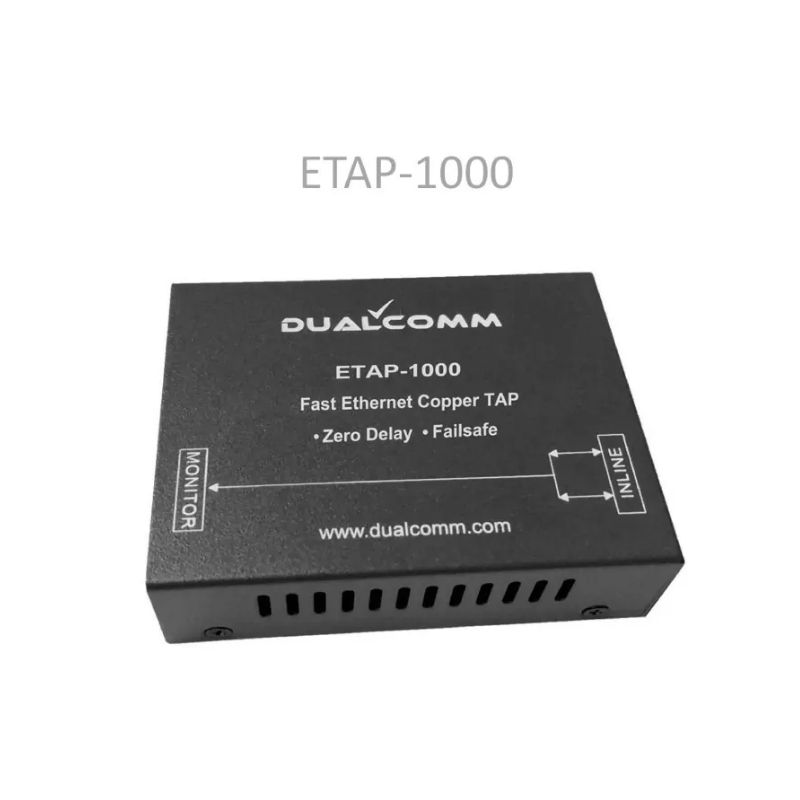

ETAP-1000 Fast Ethernet Network Tap, Zero-Delay, Failsafe

Dualcomm’s  ETAP-1000 is an Ethernet Network Tap for use with a 100Base-T Fast Ethernet copper link.  It ensures zero packet delay, which is critically useful for capturing or monitoring packet traffic flow in a delay/latency-sensitive network such as EtherCAT and PROFINET.

Although ETAP-1000 is for use with a full-duplex 100Mbps Fast Ethernet link, it is implemented with a gigabit monitor port so that no packet would be lost even if the link is running at the full line rate of 100Mbps in both directions which is equivalent to an aggregated traffic throughput of 200Mbps.

It supports power Failsafe Bypass by which the link connectivity will still not be affected in the event that it loses its power. As such, it can be deployed in a critical path in a network. When a link goes down on either side, the link on the other side will go down automatically. This feature is usually desirable or required for high availability deployment to reduce the time for activating a redundant link path in a network.

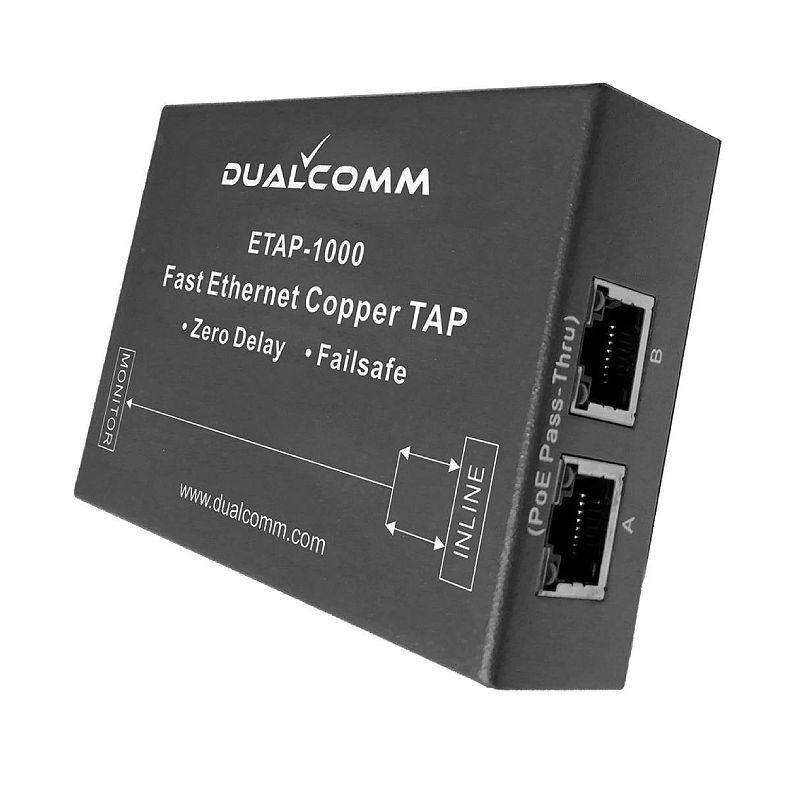

Dualcomm’s  ETAP-1000 Ethernet Network Tap is compatible with “Power over Ethernet” (PoE) so that deployment would not block the end-to-end flow of PoE inline power, which is a very useful feature for monitoring or capturing data traffic of a PoE Ethernet link.

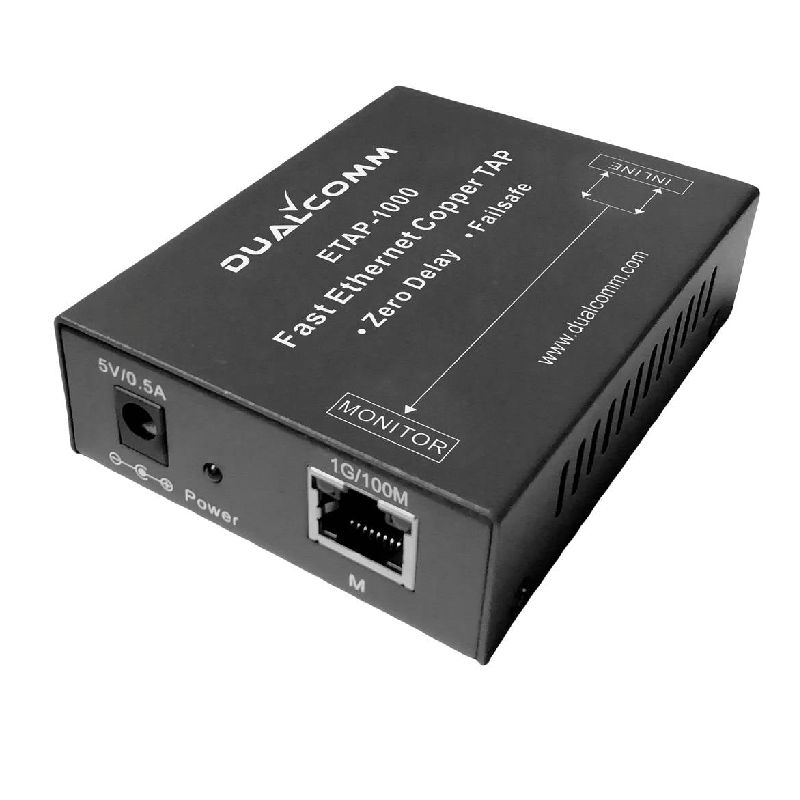

Dualcomm’s  ETAP-1000 Ethernet Network Tap can be conveniently powered from a USB port of a host device such as a laptop.
