Ethernet Over 2 Wire Extender with PoE+

The Ethernet Over 2 Wire Extender with PoE+ allows you to upgrade Ethernet networks with modern PoE powered IP devices without having to replace the existing copper wire infrastructure.

With Ethernet over 2 wire extender with PoE+, you can use your existing 2-wire cabling infrastructure to;

Convert analog surveillance systems to IP-based cameras
Extend power and network connectivity to IP devices at in remote locations
Connect or bridge two networks together using a 2 wire infrastructure

Download Datasheet

In August 2021, Transition Networks was acquired by Lantronix Inc. The products of Transition Networks will continue to be available from CoverTel as usual. Logo change of products from Transition Networks to Lantronix will be done progressively.

Category: POE Switches and Media ConvertersTags: Ethernet Extender, Media Converter Extender, Network Accessories

Description
Additional information

Description

Ethernet Over 2 Wire Extender With PoE+

EO2PSE4052-111 & EO2PD4052-111

(1) 10/100/1000Base RJ-45/SFP Combo Port + (1) 1000Base-T RJ-45 Port or 2-Wire Terminal Block

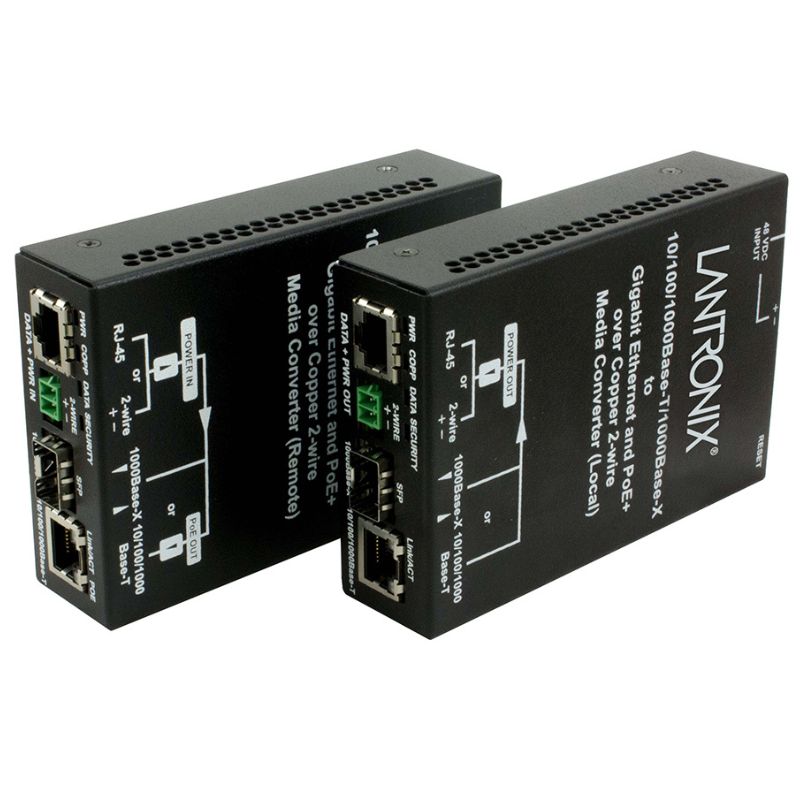

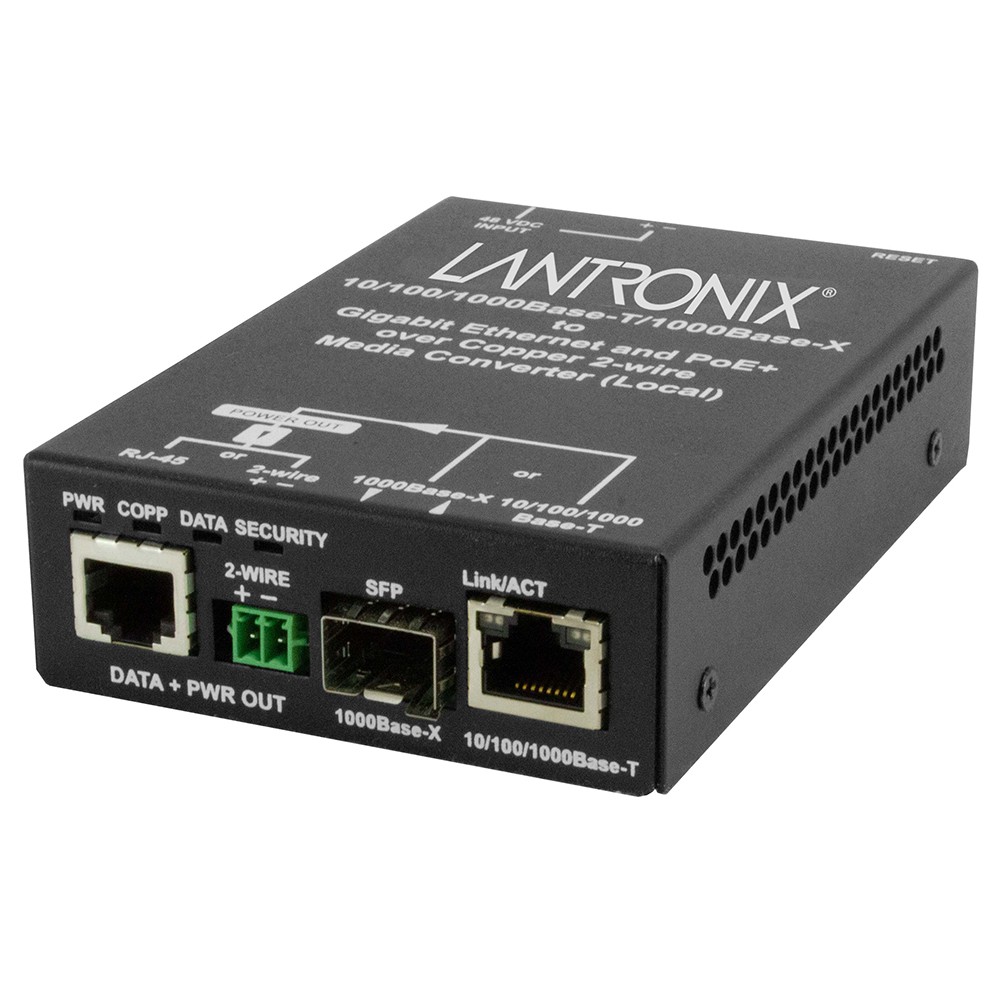

Ethernet Over 2 wire extenders with PoE+ are used in pairs, with a local device at one end of the copper link and a remote device at the other end. The extenders are compatible with fiber or copper Ethernet network equipment. The local device features 10/100/1000Base-T RJ45 and 100/1000Base-X open SFP combo port as well as an RJ-45 or two-wire terminal block connection for SELV power over UTP or twisted 2-wire to the remote device. Through the RJ45 or two-wire terminal block connection, the Remote device receives power and provides a 10/100/1000Base-T RJ45 output with PoE+ power or a 100/1000Base-x open SFP combo connection for IP cameras, wireless access points and other PoE powered end devices.

Key Features and Benefits

Copper or fiber combo Ethernet port
IEEE 802.3af/at compliant Remote PoE+ port for powering cameras or other remote IP devices
Proprietary safety extra low voltage (SELV) classification prevents unintended power delivery to non-Transition Networks devices
Half-Gigabit Ethernet speeds over UTP cable at distances of 660 feet (200m) or Fast Ethernet speeds at 2000 feet (610m) (dependent on wire gauge*)
Full PoE+ at 335-1,500 ft. over a single pair or 1,500-6,800 ft. over multiple pairs* (dependent on cable type)
Auto Power Reset (APR) and power-saving mode
Can be managed through a single IP address
Web browser configurable
Connection for optional power on Remote device
Client for DHCP, DNS, NTP

What you will receive

(QTY 1) 10/100/1000Base-T RJ45 port or (1) 100/1000Base-X SFP combo port + (1) 10/100/1000Base RJ45 or 2-Wire Terminal Block combo port (Local Device)
(QTY 1) 10/100/1000Base-T RJ45 port or 2-Wire Terminal Block combo port + (1) 10/100/1000Base-T IEEE 802.3af/at or (1) 100/1000Base-X SFP combo port (Remote Device)
(QTY 1) Industrial Power Supply, 90 ~ 264 VAC; 127 ~ 370 VDC
