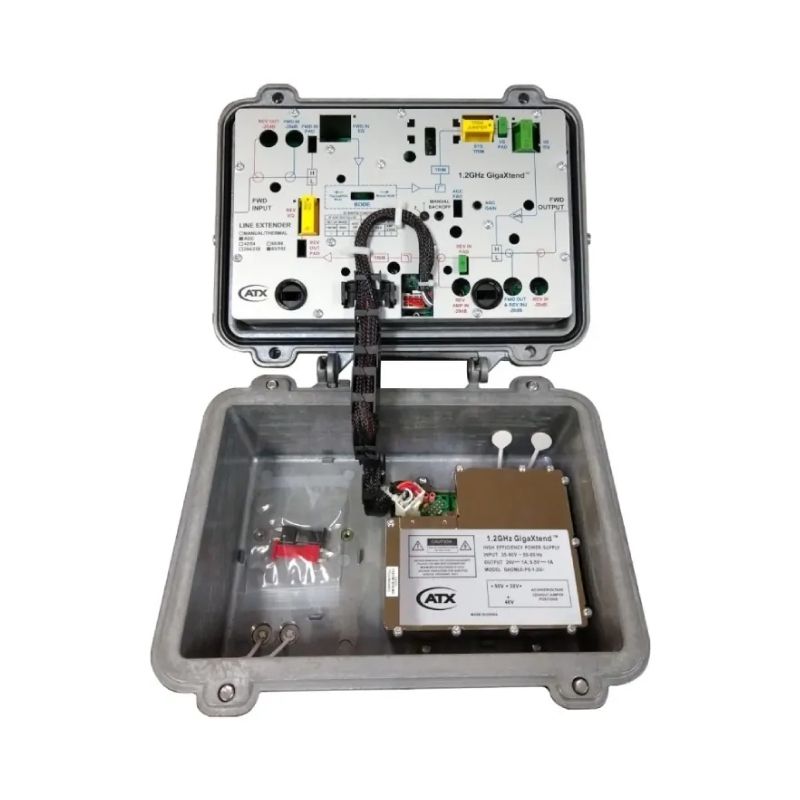

GigaXtend GMC 1.2GHz Line Extender

The ATX 1.2GHz GigaXtend™ GMC Line Extender broadband amplifier helps cable providers upgrade their networks to meet customer needs while leveraging previous investments. It uses Gallium Nitride (GaN) technology to boost the signal up to 57 dBmV, works with multiple spacing options, and is backwards compatible for easy upgrades. The modular DC power supply is easily accessible, and all modules come pre-configured for optimal performance with optional AGC configurations available.

Download Data Sheet
Request Quote
Category:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

The ATX 1.2GHz GigaXtend™ GMC Line Extender broadband amplifier is a tool that helps cable providers upgrade their networks to meet customer needs without having to start from scratch. It uses advanced Gallium Nitride (GaN) technology to boost the signal up to 57 dBmV, allowing for a high-level forward RF output. This means that the amplifier can work with a variety of different spacing options (750MHz, 870MHz, and 1002MHz) without needing major adjustments to the existing infrastructure.

The ATX GaN amplifier is designed to be backwards compatible, so it can be used to upgrade to higher bandwidths without requiring additional rewiring or other major changes. The DC power supply is modular and easy to access, making maintenance and upgrades a breeze.

To ensure optimal performance, all ATX 1.2GHz Line Extender modules are pre-configured with features like reverse amplifiers, diplex filters, thermal compensation circuit, forward interstage pads, and equalizers. Additionally, the optional single-pilot Automatic Gain Control (AGC) configurations are available to further enhance the signal quality.

Key Features:

  • High-Performance GaN Gain Stage Technology: Experience superior signal quality and enhanced network performance with our advanced GaN technology.
  • Plug-In Compatibility: The GigaXtend is fully compatible with earlier versions of the GainMaker platform, ensuring easy integration and upgrades.
  • Amplifier Cover with RF Test Points: Easily access RF test points for efficient troubleshooting and maintenance.
  • Efficient Thermal Dissipation: The power supply is mounted in the housing lid, promoting efficient thermal dissipation for consistent performance.
  • Robust Current Capacity: With a steady-state current capacity of 15A and a surge survivability of 25A, this amplifier is built to handle demanding network loads.
  • Advanced AGC Configurations: Enjoy the benefits of Quadrature Amplitude Modulation (QAM) pilot channel AGC with optional single-pilot Automatic Gain Control (AGC) configurations.
  • Optimized Design: Equipped with reverse input pad and RF test point for optimal reverse path design and alignment.
  • Surge-Resistant Circuitry: Built-in surge-resistant circuitry provides gain stage protection without reliance on fuses or other failure-prone devices.
  • Easy Installation: Spring-loaded seizure assemblies allow hassle-free installation and removal of coaxial connectors without disturbing the amplifier RF module.

Benefits:

  • Seamless Upgrades: Upgrade to higher bandwidth with no respacing or resplicing, thanks to the mechanical compatibility with GainMaker® Line Extender GMLE housing bases.
  • Enhanced Signal Quality: Experience improved signal integrity and network performance with GaN technology’s high-performance gain stage.
  • Reliable Performance: With surge-resistant circuitry and advanced thermal dissipation, the GigaXtend ensures consistent and reliable operation.
  • Flexible Configuration: Choose from a variety of AGC configurations to optimize performance according to your network’s needs.
  • Effortless Maintenance: Access RF test points and amplifier components easily for efficient troubleshooting and maintenance.
  • Future-Proof Investment: The GigaXtend’s compatibility and modular design make it a long-term investment that can adapt to evolving network requirements.
