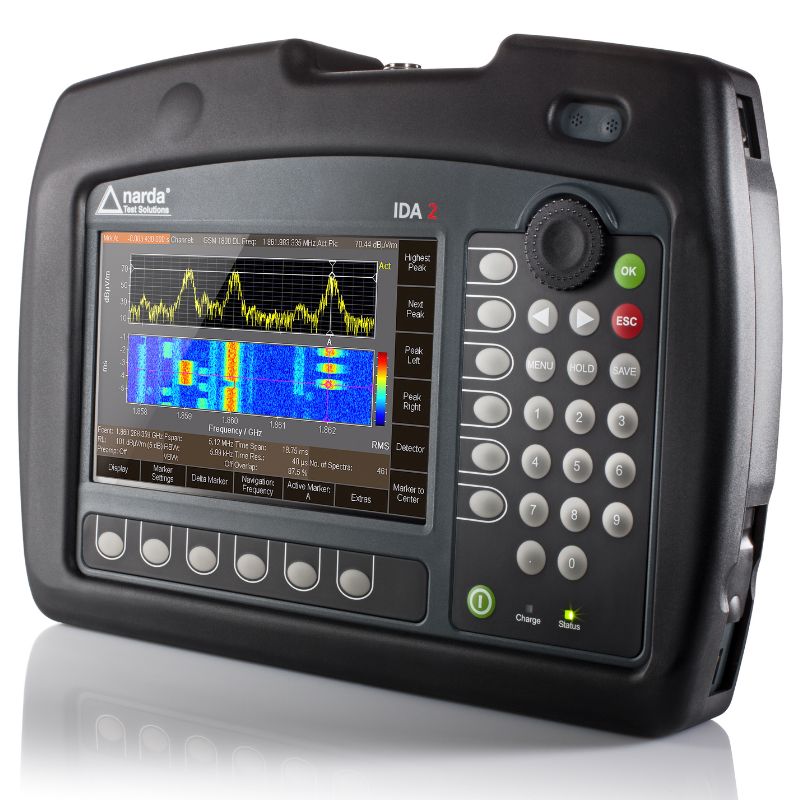

IDA 2 Handheld Interference and Direction Analyzer

Signal Analyzer

Lightweight, portable signal analyzer for detecting, analyzing and locating radio signals and radio interference.

With the IDA 2 Handheld Interference and Direction Analyzer, you can view both radio sources and RF signals as well as monitor them with fast monitoring capabilities. You will also be able to access a dual compass and map display so you can locate radio sources on the map.

Download IDA 2 Handheld Spectrum Analyzer Product DataSheet
Request Quote

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

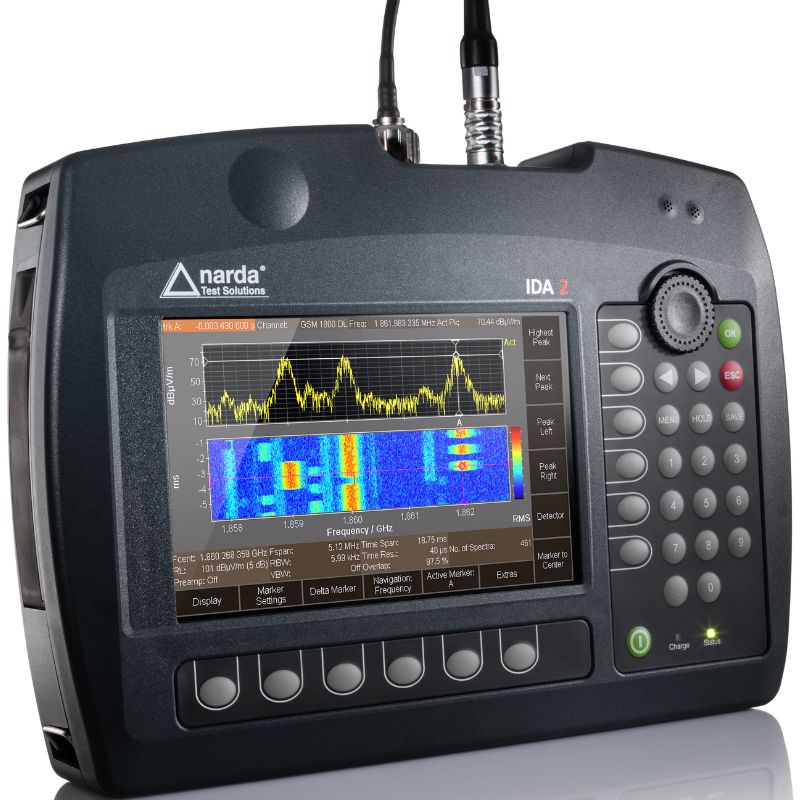

With the IDA 2 Handheld Interference and Direction Analyzer Analyzer, you have a frequency scanner/receiver, transmitter detector, spectrum analyzer, signal analyzer, and triangulation software all in one device. There is also a range of accessories including directional antennas with built-in preamplifiers, electronic compass and switchable preamplifiers.

Key Features and Benefits:

  • Extremely fast measurement with a sweep rate of up to 12 GHz/s
  • One of the lightest devices in its class, weighing less than 3 kg
  • Impressive measurement sensitivity with a noise figure of 7 dB
  • Built-in GPS receiver and electronic compass
  • Convenient troubleshooting with smartDF®: automatic localization through triangulation of the bearings with display on a map
  • I/Q analyzer with real-time trigger, spectrograms with a time resolution of up to 1 μs and digital afterglow effect (persistence spectrum)

This signal analyzer is primarily used for detecting, analyzing, and localizing HF signals. Additionally, it boasts several innovative features, such as horizontal scan and automatic azimuth determination via smartDF®. With its robust, ergonomic design, this handheld spectrum analyzer is protected against mechanical stresses, weather influences, and high levels of radio frequency radiation.

Measurements with the IDA 2 lead quickly to the goal thanks to practical operating modes:

  • Spectrum
  • Direction Finding
  • Level Meter
  • Multi-Channel Power
  • Time Domain (Scope, time history)
  • I/Q Analyzer (I/Q display, magnitude display, high-resolution spectrograms and persistence spectra)
