Industrial Water Leak Sensor

The Industrial Water Leak Sensor by Infrasensing is a reliable and versatile solution for detecting water leaks in critical facilities. With its easy installation, multiple alert options, and expandable coverage, this sensor ensures timely notifications and helps prevent potential damage. Its robust construction and approved installation in ordinary and hazardous areas make it a durable choice. With a rapid response time of 1-2 seconds and a reusable design, it provides efficient water leak detection. Invest in the Industrial Water Leak Sensor for reliable protection of your infrastructure.

Download Datasheet
Request Quote
CoverTel is a Partner of InfraSensing and is authorized to resell and provide services for InfraSensing sensors and ServersCheck Monitoring platform.
SKU: ENV-WLEAK-COMBO5M Categories: , Tag:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

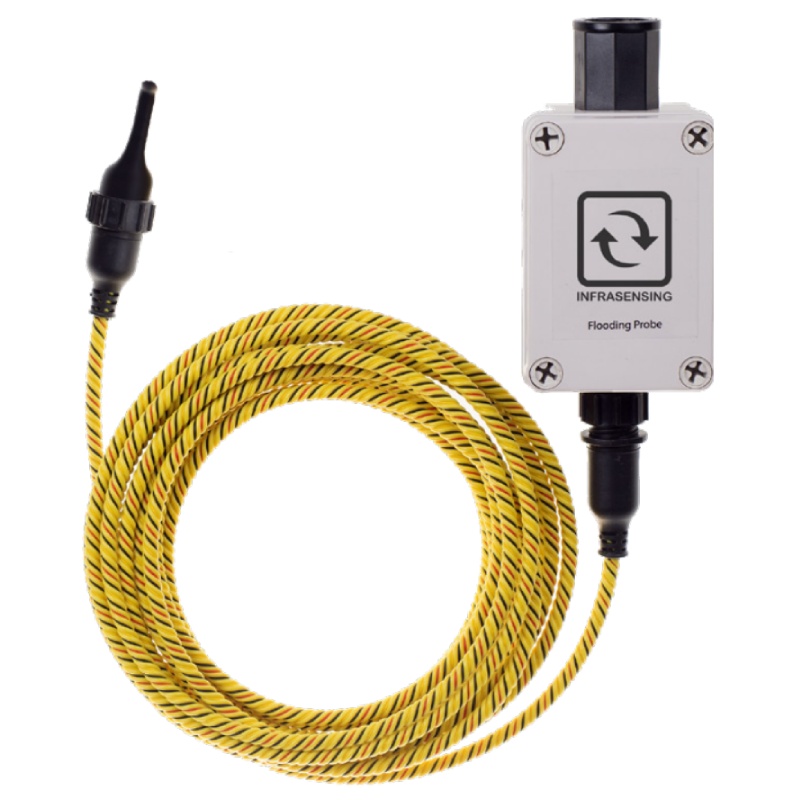

The Industrial Water Leak Sensor  by Infrasensing is a powerful water ingress detection device designed to protect your critical facilities from the damaging effects of water intrusion. With its advanced features and reliable performance, this water leak sensor is a perfect fit for your needs.

Key Features:

  • Easy installation: The sensor plugs into the base unit (BASE-WIRED) effortlessly, ensuring a hassle-free setup process.
  • Seamless power supply: Powered by the base unit (BASE-WIRED), the sensor eliminates the need for additional power sources, reducing complexity.
  • Multiple alert options: Receive timely notifications via SNMP Traps, email, SMS, or voice calls, allowing you to take immediate action when a water leak is detected.

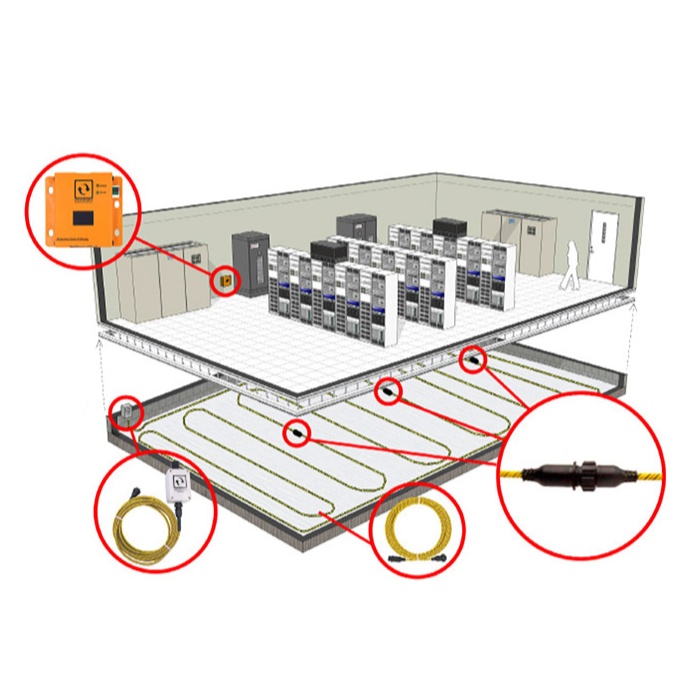

  • Expandable coverage: Each sensor provides coverage of up to 200m/656ft, enabling you to monitor a large area with a single device.
  • Robust construction: The sensing cables are resistant to corrosion and abrasion, ensuring long-lasting performance even in harsh environments.
  • Reusable design: The sensing cable can be reused, making it a cost-effective solution for continuous water leak detection.

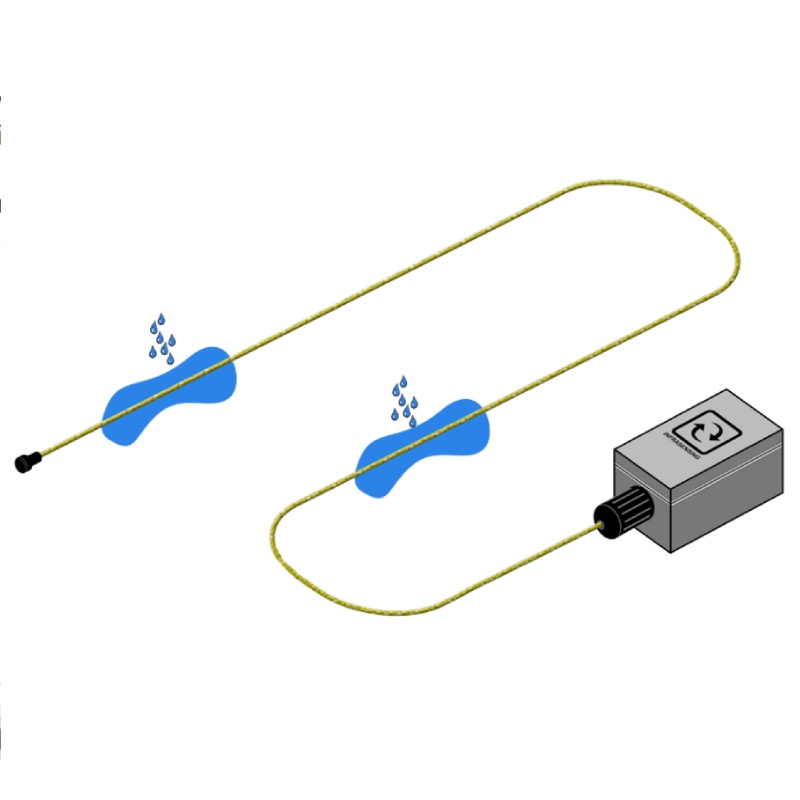

  • Rapid response: With a trigger time of just 1-2 seconds, the sensor quickly alerts you as soon as water touches the cable, minimizing potential damage.
  • Versatile installation: The sensing cables are approved for installation in both ordinary and hazardous areas, providing flexibility for various environments.

Technical Specifications:

Power Source: SensorGateway (BASE-WIRED)
Power Usage: 264 mW
Water detection trigger: 1-2 seconds
Drying time: Cable dries and resets within 5 seconds of removal from standing water
Standard cleaning method: Wipe with a clean damp cloth
Cable breaking strength (including connectors): 70lbs/32kg
Data Output: Provides a WET/DRY indication in SensorGateway
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF)
Sensor Housing Material & RJ45 cable gland protection rating: IP 68
Dimensions: 65 mm (2.56″) x 95 mm (3.74″) x 55 mm (2.17″)
Weight: 0.17 kgs (0.37 lbs.)
