Managed Hardened Gigabit Ethernet Switch

SISGM1040-184D-LRT

The SISGM1040-184D-LRT is an ethernet switch that helps you connect your devices in hazardous environments. It has 4 slots that can be used with different types of cables to connect to the network, and they can work at different speeds. This helps make the network more reliable and strong. It also has two ways to get power and can handle extreme temperatures. This makes sure your network stays safe and working well no matter what.

Download Datasheet
Request Quote
In August 2021, Transition Networks was acquired by Lantronix Inc. The products of Transition Networks will continue to be available from CoverTel as usual. Logo change of products from Transition Networks to Lantronix will be done progressively.
Category: Tags: ,

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

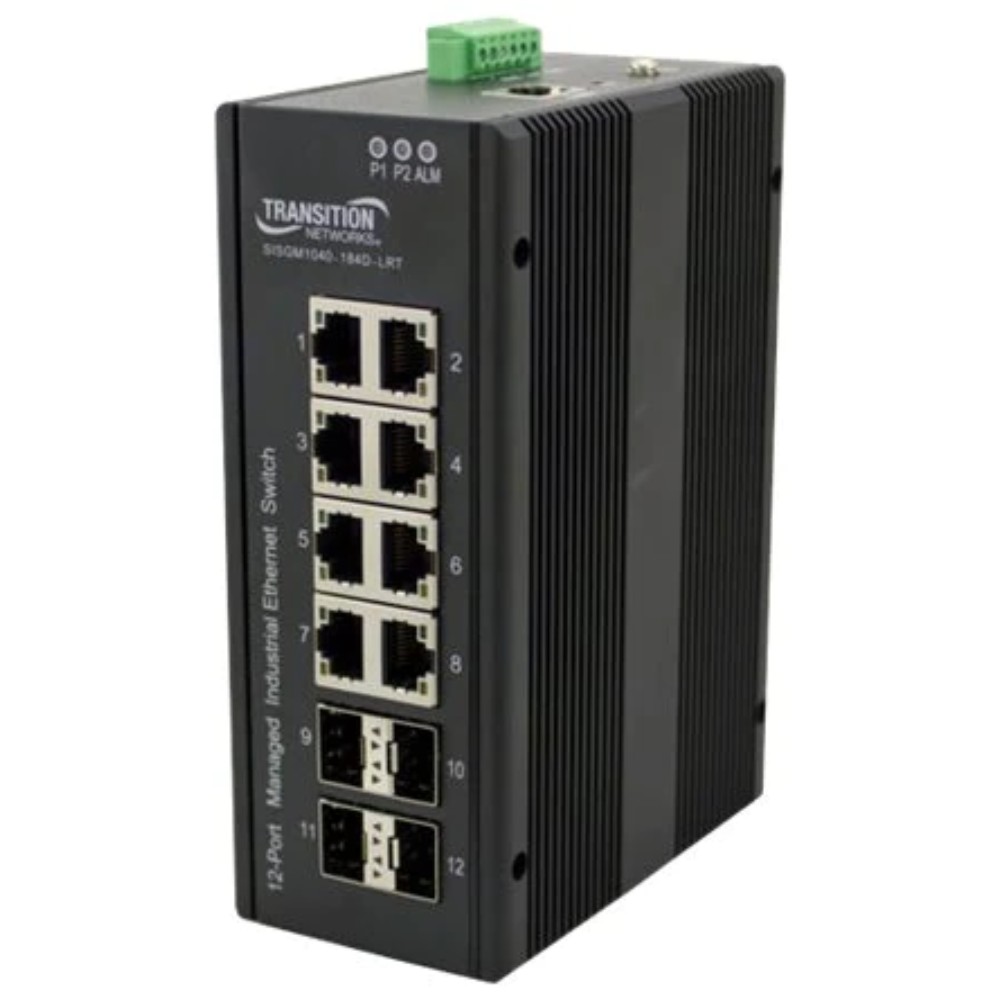

Managed Hardened Gigabit Ethernet Switch SISGM1040-184D-LRT
(8) 10/100/1000Base-TX Ports + (4) 100/1000Base-X SFP Slots
SISGM1040-184D-LRT

The SISGM1040-184D-LRT is a type of network device that is specifically designed for use in harsh and hazardous environments. This device, known as a managed Gigabit switch, allows for the connection of remote devices to a network.

One of the key features of this switch is its (4) dual speed SFP slots. SFP slots are the ports that allow for fiber optic cable connections, and the dual speed capability of these ports provides ultimate flexibility. This means that the switch can support connections at either Fast Ethernet or Gigabit Ethernet speeds, and at a variety of communication distances, making it suitable for a wide range of applications.

Another important feature of the SISGM1040-184D-LRT is that the ports can be used in a redundant ring, which provides maximum network reliability. A redundant ring is a backup system that ensures that the network continues to operate even if one part of it fails. This helps to minimize downtime and keep the network running smoothly.

In addition, the switch has redundant input power connections, which provide an extra level of security in the event that one power source fails. The switch also has a fault alarm relay, which alerts the user in the event of a problem, allowing for prompt resolution. This switch can operate safely and reliably in temperatures ranging from -40°C to +75°C, making it suitable for use in a wide range of environments.
Key Features and Benefits:

  • Reset button
  • Ethernet isolation: 1500 VRMS / 1 minute
  • Redundant ring V2; single & multiple rings supported, link loss recovery < 20ms
  • Port Security: IP and MAC-based, IEEE 802.1x
  • IEEE 802.1p Class of Service,Per port provides 8 priority queues, port-based shaping, scheduling schemes: SPQ, WRR, SPQ + WRR
  • Login Security IEEE 802.1X/RADIUS/TACACS+
  • DIN Rail Mounting and Wall Mount Brackets
