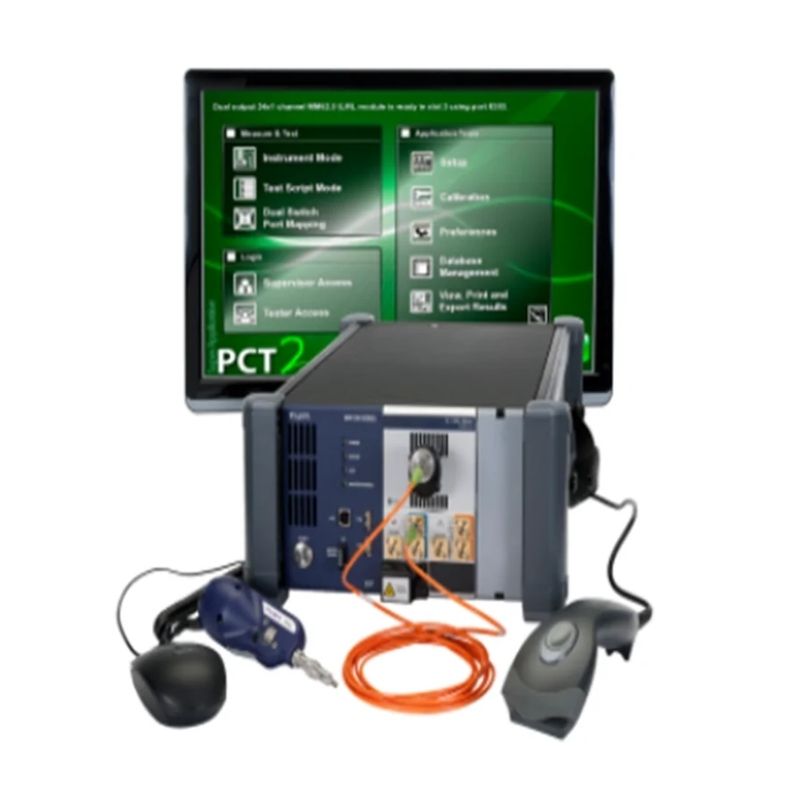

Insertion Loss and Return Loss Testing Solution (mORL)
for MAP Series
A powerful, compact fiber optic insertion loss and return loss testing solution for use with the advanced MAP-200 platform. The VIAVI Solutions Insertion Loss/Return Loss Testing Solution (mORL) is an advanced testing solution designed for optical connectivity products. This versatile solution offers rapid and accurate testing of insertion loss, return loss, physical length, and polarity of optical connectors and cable assemblies. Its modular platform allows for scalability and compatibility with various fiber types. With space-saving benefits and rapid testing capabilities, the mORL is a reliable choice for optimizing testing processes in industries like data centers and telecom.
Description
The Insertion Loss/Return Loss Testing Solution (mORL) is a versatile and advanced fiber optic insertion loss and return loss testing solution designed to meet the needs of various optical connectivity applications. With its powerful features and benefits, the mORL offers a compact, efficient, and reliable solution for insertion loss, return loss, and physical length testing of optical connectors and cable assemblies.
Key Features:
- Comprehensive Testing: The mORL solution supports testing of insertion loss (IL), return loss (RL), physical length, and polarity of optical connectivity products, ensuring complete quality assessment.
- Modular Platform: Leveraging the VIAVI MAP Series platform, the mORL offers a modular and scalable solution that can be configured for various testing environments, from R&D to production.
- Wide Compatibility: The solution is capable of addressing all key fiber types, from single-mode through OM1, OM4, and OM5, making it suitable for various applications.
- Fast Testing: The mORL solution features rapid testing capabilities, with quick setup and execution of RL measurements, saving valuable time during testing procedures.
- Port Mapping: The fiber optic insertion loss and return loss testing solution includes a feature that verifies multifiber MPO cassette continuity and polarity in less than 15 seconds, enhancing efficiency and accuracy.
- Support for Multifiber Connectors: The mORL fully supports high-growth MPO and MTP multifiber connectors, catering to the demands of evolving network technologies.
Benefits:
- Space-Efficient: The mORL requires only 25% of the space compared to other solutions, optimizing your workspace and ensuring efficient use of resources.
- Expansion Possibilities: With the mORL, you can easily expand into new high-growth, high-performance applications like 40/100 G data center markets, enabling you to stay competitive in evolving industries.
- Scalability: The modular platform allows you to scale the testing capabilities as your needs arise and your budget allows, providing a cost-effective solution that grows with your requirements.
- High-Speed Testing: The mORL’s ability to measure RL and IL quickly and accurately ensures efficient testing processes and enhances productivity.
- Diverse Applications: From testing optical connectors and cable assemblies to verifying continuity and polarity of multifiber assemblies, the mORL covers a wide range of applications, making it a versatile solution.
- Reliable Compliance: The solution meets important compliance requirements such as CE, CSA/UL/IEC61010-1, and LXI Class C, ensuring quality and safety in your testing environment.
