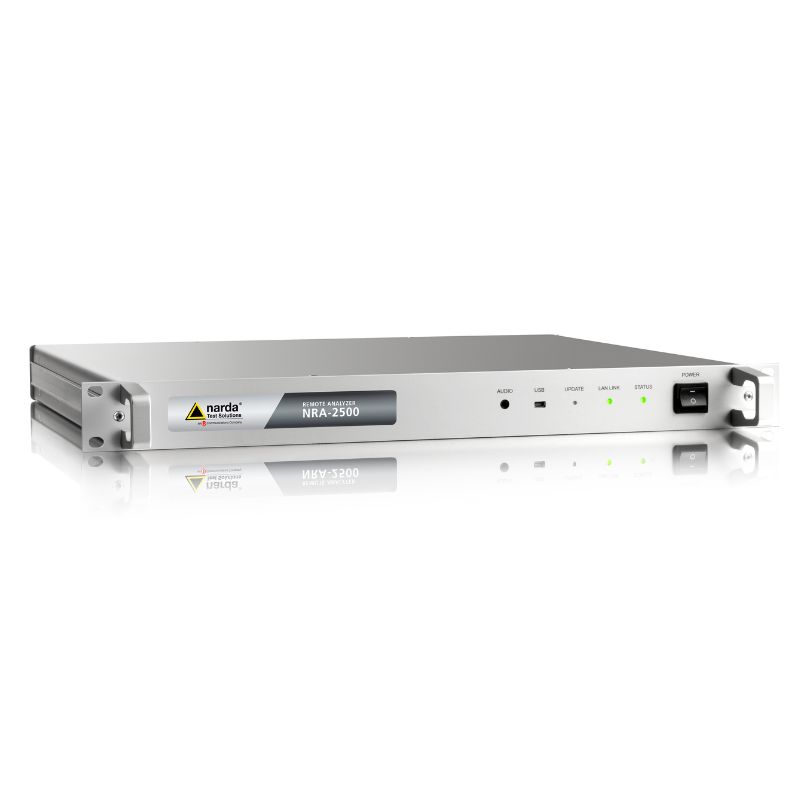

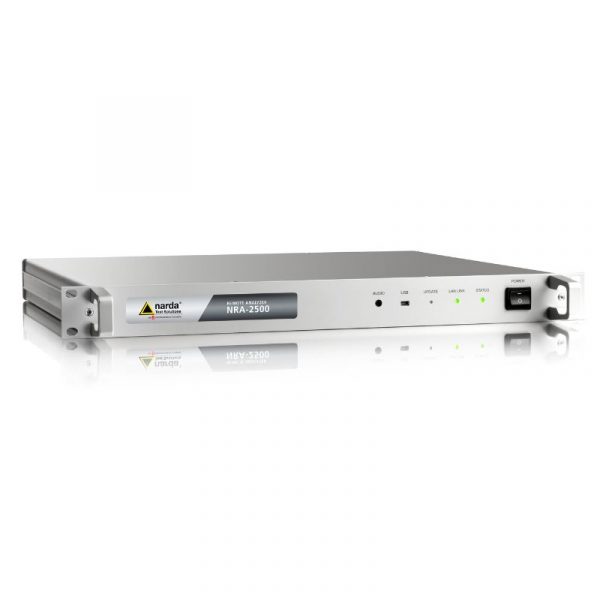

NRA 2500 Spectrum Analyzer
Frequency Range: 5 MHz – 2.5 GHz
This Remote Spectrum Analyzer provides all you need for satellite tracking, antenna alignment and carrier monitoring in 19″ rack format.
It is possible to integrate the NRA 2500 Spectrum Analyzer with virtually any measurement environment using the Ethernet interface and ASCII plain text remote control commands. Binary formats are capable of transmitting large amounts of data very quickly.
Description
The NRA-2500 is a cost-effective entry level analyzer especially developed for measurement tasks in the field of satellite communications (SatCom). Its 5 MHz to 2500 MHz frequency range is tailored to the L-Band, allowing the NRA-2500 to monitor the intermediate frequencies and reference signals commonly used in satellite communications.
Key Features and Benefits:
- Frequency resolution (RBW) from 1 kHz to 1 MHz
- 30 dB input attenuator settable in 1 dB steps
- Display range from -110 dBm to +1 dBm (RBW = 1 kHz)
- DANL < -140 dBm/Hz
- < 1.5 dB level measurement uncertainty at 15°C to 30°C
- High resolution spectrum with up to approx. 600,000 measurement points
- Detector for fixed resolution (Bins), selectable data compression with +Peak-, -Peak- or RMS storage for lower data transfer rates
- ASCII or binary data transfer
- Multi-Channel Power option: Level measurement in up to 500 freely definable channels
- It is possible to integrate the NRA with virtually any measurement environment using the Ethernet interface and ASCII plain text remote control commands.Level Meter (Zero Span) option: Resolution bandwidths from 100 Hz to 32 MHz
