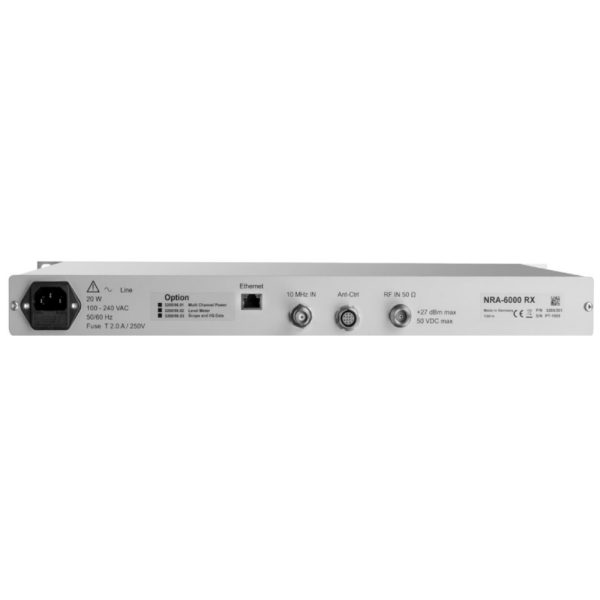

NRA 6000 RX Spectrum Analyzer

Frequency Range: 9kHz – 6GHz

The NRA 6000 RX is a cost-effective 19″ remote spectrum analyzer that captures a wide range of signals from 9 kHz up to 6 GHz. It’s perfect for short- and long-term observation of all types of RF signals, and can help you with tasks such as decoding signals and detecting illegal transmitters. With its Ethernet interface and plain text remote control, it’s really easy to use and can handle large quantities of data quickly. Designed and manufactured in Germany, the NRA 6000 is an indispensable tool for anyone involved in signal monitoring.

Download Datasheet
Request Quote

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

The NRA 6000 RX is a powerful spectrum analyzer that can help you monitor radio signals and keep up with the latest technology. With the NRA-6000 RX, you can analyze all kinds of radio frequencies, including the latest ones used by mobile phones.

If you need to monitor signals, the NRA is a great choice because it’s easy to integrate into different measurement environments. You can control it remotely using plain text commands over an Ethernet connection, and it can handle lots of data really quickly.

It’s becoming more and more important to follow technical standards when using wireless technology because there’s only so much space in the frequency spectrum. The NRA 3000 RX and NRA 6000 RX are designed specifically to help with things like:

  • Listening in on radio signals
  • Figuring out what kind of signal you’re hearing
  • Measuring how much of the frequency spectrum is being used
  • Measuring how far a signal can travel
  • Analyzing signals and figuring out what they mean
  • Finding people who are using illegal radio transmitters
  • Gathering intelligence about radio communications

In a world where wireless technologies are ubiquitous, it’s crucial to use the limited frequency spectrum judiciously. The NRA 3000 RX and NRA 6000 RX are tailored to help achieve this goal, making them an essential asset for anyone involved in signal monitoring.

Key Features and Benefits:

  • Frequency resolution (RBW) from 10 Hz to 20 MHz
  • 50 dB input attenuator switchable in 1 dB steps
  • Display range from -150 dBm to +21 dBm (RBW = 10 Hz)
  • DANL < -155 dBm/Hz
    < 1.2 dB level measurement uncertainty at 15°C to 30°C
  • High resolution spectrum with up to 600,000 measurement points
  • Detector for fixed resolution (Bins), selectable data compression with +Peak, -Peak, or RMS storage for lower data transfer rates
  • ASCII or binary data transmission
  • Multi-Channel Power option: Simultaneous level measurement in up to 500 freely-definable channels
  • Level Meter (Zero Span) option: Resolution bandwidths from 100 Hz to 32 MHz
  • Scope and I/Q Data option: Real time analysis 100 Hz – 32 MHz in the time domain, I/Q data transfer up to 32 MHz CBW (block wise); streaming up to 400 kHz CBW
  • Designed and manufactured in Germany
