PON Power Meter, Test 1310nm/1490nm/1550nm Wavelengths Synchronously

Quickly test and certify your fibre jumper continuity with Steren’s PON Power Meter.

Key Features

  • Test 3 wavelengths’ power of PON system synchronously: 1310n, 1490nm, 1550nm,
  • Suitable for all PON networks (APON, BPON, GPON, EPON)
  • User-defined threshold settings
  • Supply 3 groups of threshold values to analyse and display pass/fail status
  • Relative Value (Differential Loss)
  • Save and upload the records to computer
  • Set threshold value, upload data, and calibrate wavelength through management software
  • 32 bit CPU, easy to operate, simple and convenient
Request Quote
Although we make every effort to maintain an inventory of Steren products available for immediate shipment, please be aware that occasionally we may need to source items upon your purchase. Rest assured, our team is committed to delivering your order promptly, and we aim to have it shipped within 10-15 days.
SKU: BL-526-109 Category: Tag:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

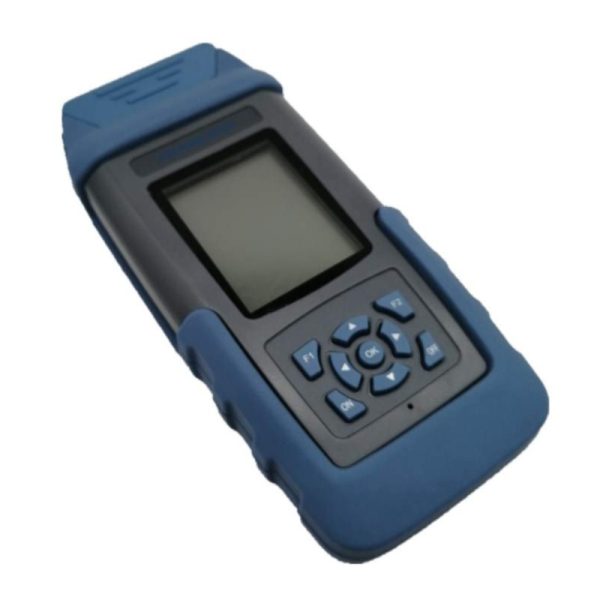

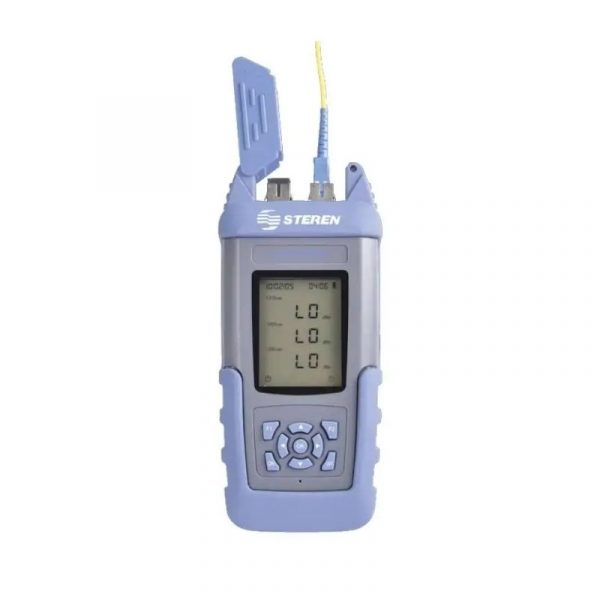

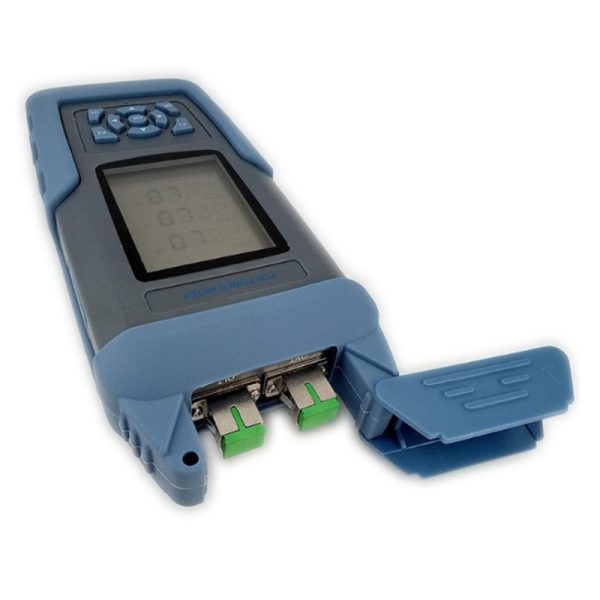

PON Power Meter

Steren’s PON Power Meter is designed to test FTTX PON network construction and maintenance of fibre optic communications system. This ruggedized handheld meter can also provide access between OLTs and ONTs.

This handheld meter has an impressive display resolution and testing accuracy. It has 6 wavelength calibration points: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm. This meter can be used for linearity and non-linearity testing, and display both direct and relative testing. The voice, data, video signal (1310nm/1490nm/1550nm) online can be measured simultaneously. It can also display the optical power of all 3 operational PON wavelengths.

This PON Power Meter is perfect for measuring burst optical power. This feature is crucial for understanding upstream PON signals of 1310nm. It can process pass/fail analysis conveniently through multiple user adjustment thresholds of every wavelength. This meter is a useful device for live acceptance testing during service and fault isolation during maintenance.

Additional information

Weight1 kg
Dimensions25 × 25 × 15 cm
