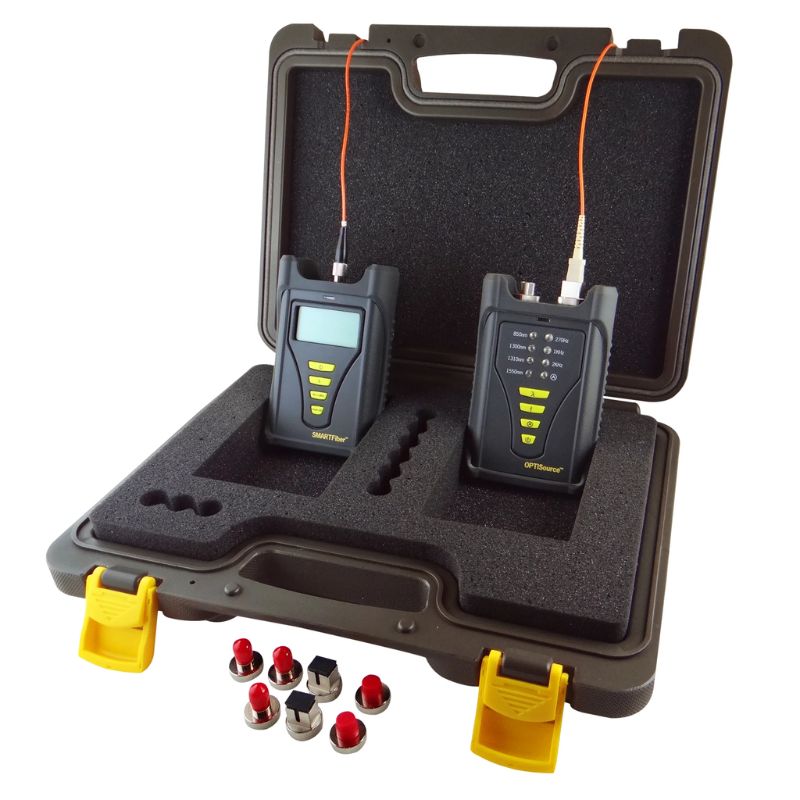

SMARTFiber II and OPTISource 850/1300/1310/1550 Kit

The SMARTFiber II and OPTISource 850/1300/1310/1550 Kit is a special set of tools that help people who work with networks to test and fix fibre optic cables. It has two main tools in it: a Power Meter and an Optical Light Source. The Power Meter helps measure the strength of the light going through the fibre optic cables, and the Optical Light Source helps find problems in the cables like breaks or bends. The kit is very useful for making sure networks work well and for fixing any problems that may occur. A must have tool for network professionals.

Request Quote
We are an Authorised Distributor of Hobbes Innovation. If you can't find the right tool on our website, please reach out to us and we'll source it for you. Since 1985 Hobbes Innovation, has been manufacturing test and measurement equipment worldwide and has built up a strong reputation in the telecommunications and computer industries from its base in Taiwan.
SKU: FM-257836PK2 Categories: ,

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

SMARTFiber II and OPTISource 850/1300/1310/1550 Kit

The SMARTFiber II and OPTISource 1310/1550 Kit is a set of tools that is designed for network professionals to use in the installation, maintenance, and troubleshooting of optical network systems. The kit includes two essential devices: a Power Meter and an Optical Light Source.

The SMARTFiber II is the latest version of the SMARTFiber Power Meter and includes six different wavelengths (850/1300/1310/1490/1550/1625) for measuring the power of fibre optic cabling systems. It has an interchangeable interface that allows it to test FC, ST, and SC type connectors. It uses InGaAs technology to improve sensitivity and temperature stability, with a dynamic range of +3 to -60dBm. The SMARTFiber II can also simultaneously receive modulated signals at 270Hz, 1KHz, 2KHz, making it useful for identifying and continuity testing of both Single mode and Multi mode fibre cables.

The OPTISource 1310nm/1550nm wavelength is an Optical Light Source which is a continuous, high-stability LD light source that is used for signal attenuation, certification, fault detection, breaks and bends of fibre cables. This light source is specifically designed for multimode fibre cables.

The SMARTFiber II and OPTISource 1310/1550 Kit ensures signal attenuation, certification, fault detection, breaks and bends of multimode fibre cables. This kit is designed to deliver exceptional functionality and accuracy for optimizing fibre networks, installation, lab research, optical development, maintenance, and a variety of other optical network operations. The kit is an ideal solution for network professionals who need to accurately and efficiently test and troubleshoot optical network systems.

Key Features and Benefits:

SMARTFiber II (Power Meter)

  • 6 Operating Wavelengths: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
  • Interchangeable Connectors: FC, ST, SC, and 2.5mm (optional) type interface for maximum flexibility
  • Sensor Type: InGaAs for greater sensitivity and stability
  • Dynamic Range: +3 to –60dBm
  • Accuracy: ±0.15dB±1nW@1300nm /1310nm /1490nm/1550nm; ±0.25dB±1nW@850nm/1625nm
  • 2 Unit Measurement: dBm & Watt
  • Automatic wavelength detection (when used with Hobbes OPTISourceas laser light source)
  • Reduce downtime and interruptions
  • Battery indicator & auto power-off function
  • Rugged, Compact, and Portable Design

OPTISource 850/1300/1310/1550 (Optical Light Source)

  • Wavelength: 850nm/1300nm/1310nm/155nm
  • High-Stability LD Light Source
  • Interchangeable Connector: FC, SC, and ST Type Interface
  • 3 Output Modes: CW, MOD, Auto–Identify
  • CW and 270Hz, 1kHz, 2kHz modulated signals
  • Auto “Power Off”
