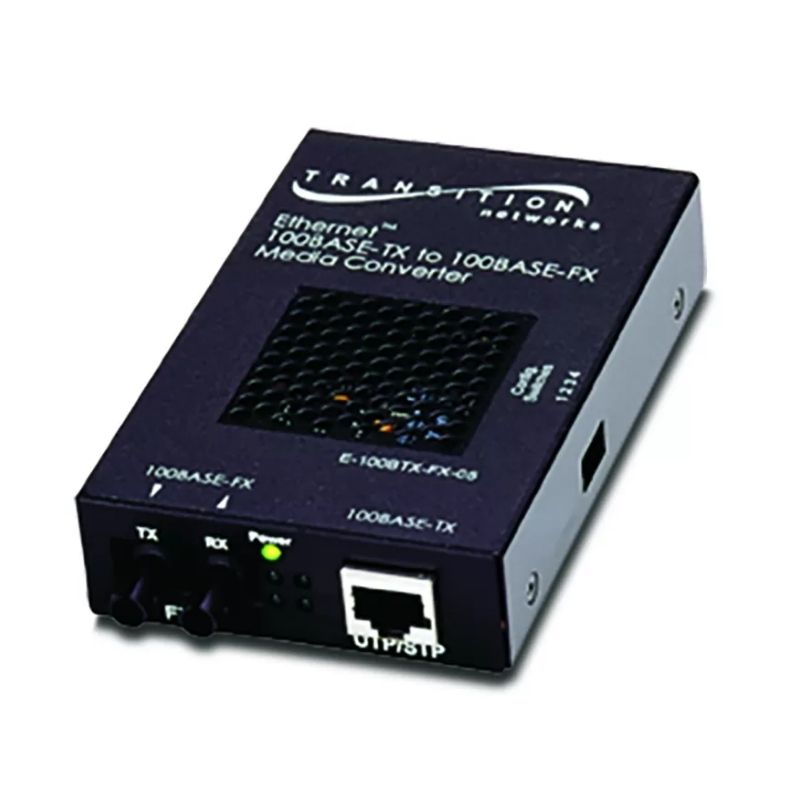

Stand Alone Fast Ethernet Media Converter

E-100BTX-FX-05 Series

The E-100BTX-FX-05 Series Stand-alone Fast Ethernet Media Converter is a smart and reliable device that allows you to smoothly connect fiber optic cables to your regular network. It works at lightning-fast speed, ensuring quick data transfer without any delays, which is perfect for applications that need speedy communication.

This media converter comes with some handy features, like the ability to automatically adjust settings for the best performance, making installation a breeze. It also continuously checks the connection’s status and helps detect and fix issues, keeping your network running smoothly.

You can choose from various options to suit your needs, whether you want to cover short distances or extend your network up to 20 km. Plus, it’s compliant with industry standards and comes with a lifetime warranty, giving you peace of mind about its quality and reliability.

Download Datasheet
Request Quote
In August 2021, Transition Networks was acquired by Lantronix Inc. The products of Transition Networks will continue to be available from CoverTel as usual. Logo change of products from Transition Networks to Lantronix will be done progressively.
Category: Tag:

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

Stand Alone Fast Ethernet Media Converter
100BASE-TX (RJ-45) to 100BASE-FX
E-100BTX-FX-05 Series

The E-100BTX-FX-05 Series Stand-alone Fast Ethernet Media Converter is an efficient solution that seamlessly integrates fiber optic cabling into 100Base-TX copper environments. This product operates at Layer 1, the physical layer, ensuring data is transmitted at line speed, making it an excellent choice for applications where low latency is crucial.

Features and Benefits:

  • Operates Under Heavy Traffic Loads: The E-100BTX-FX-05 Series can handle heavy traffic loads without generating excess heat. Its design eliminates the need for an internal fan, ensuring a reliable and failure-free performance.
  • Low Round Trip Delay: With a round trip delay of only 40 bit times, well below the Class II rating of 92 bit times, this media converter ensures swift data transmission and minimal latency.
  • Auto-Negotiation: The Auto-Negotiation feature allows the converter to automatically select the best possible speed and duplex mode for the network connection, ensuring optimal performance.
  • Auto-MDI/MDIX: This converter supports Auto-MDI/MDIX, which means it automatically detects and adjusts for the type of cable (straight-through or crossover) connected to its RJ-45 port, simplifying installation and reducing potential errors.
  • Active Link Pass Through: The Active Link Pass Through feature continuously monitors the link between the converter and connected devices, providing real-time status updates for easy troubleshooting.
  • Far-End-Fault (FEF): The Far-End-Fault feature detects remote link failures, helping to identify and address issues quickly to minimize downtime and ensure network reliability.
  • Pause: The Pause function allows the converter to send pause frames, temporarily stopping data transmission, ensuring smooth communication even under heavy network congestion.
  • Automatic Link Restoration: In the event of a temporary link loss, the converter automatically restores the link once connectivity is reestablished, reducing manual intervention and enhancing network uptime.
  • Wide Range of Options: The E-100BTX-FX-05 Series offers various models to cater to different needs and distances, including multimode and single-mode options with varying link budgets to cover distances up to 20 km.
  • Easy Expansion: Optional accessories like the 12-Slot Media Converter Rack and 4-Slot Media Converter Shelf provide convenient expansion options for future network growth.
  • Reliable and Compliant: This media converter meets industry standards (IEEE 802.3, 100Base-FX, 100Base-TX) and complies with FCC Class A, EN55024, EN55022 Class A, EN61000, and CE Mark regulations, ensuring a dependable and safe performance.

Whether you need to extend network distances, integrate fiber optics, or improve network performance, the E-100BTX-FX-05 Series Stand-alone Fast Ethernet Media Converter offers a reliable, efficient, and versatile solution to meet your specific networking requirements. With its user-friendly features, high-quality design, and extensive warranty, this product is an ideal fit for any business or organisation seeking to enhance their network capabilities.
