Zeus – Power Utility Tester

Maintain the communications in the power industry supporting legacy and new protocols

Zeus, named after the god of thunder, provides deep insights to design, install, maintain, troubleshoot and engineer communications infrastructures of the Smart Grid and more particularly of the Power Substations. The unit is able to test Ethernet/IP, PTP, GbE, IRIG-B, T1/E1, G703, C37.94, GOOSE, SV and MMS protocols. One-way-delay tests, assisted by GPS, is possible at all interfaces.

It also has a set of programmable filters to capture live data traffic at wire-speed. It verifies WAN and Substations communications and supports new IEC 61850 protocols such as PTP or GOOSE and the legacy as well such as IRIG-B, C37.94 or G703.

With Zeus you will get a perfect vision & control of your infrastructures improving protection & data acquisition.

Request Quote
Available for short term rentals. Rent it Today
Categories: ,

Interested in this product?

1800 268 378
This field is for validation purposes and should be left unchanged.

Description

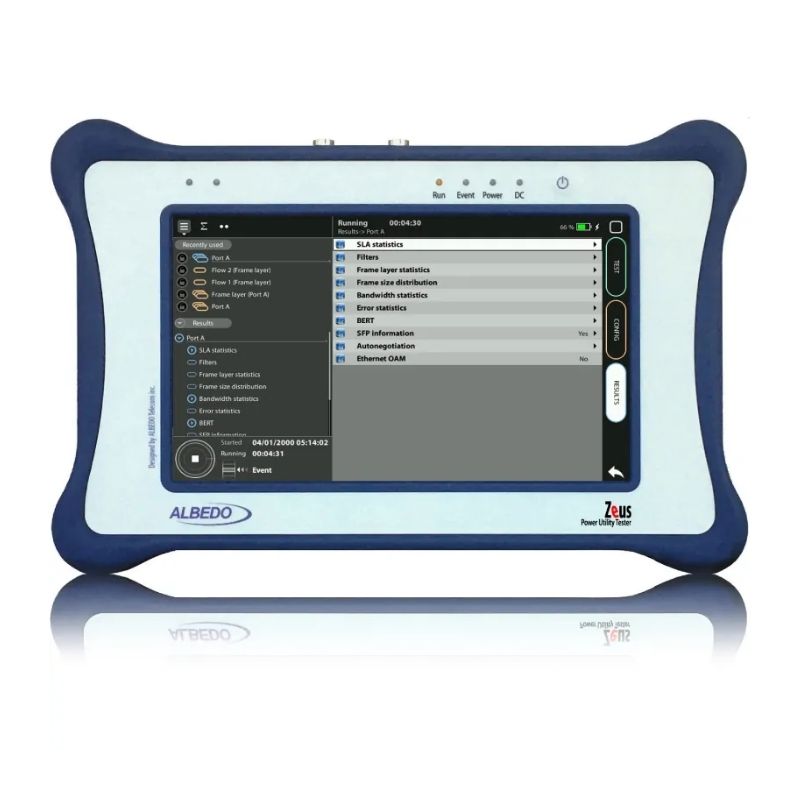

Zeus the ultimate Power Utility Tester

Zeus is a powerful tool that helps improve communication infrastructures in the power industry and helps keep everything running smoothly.

Zeus is invented to design, install, maintain, troubleshoot, and engineer communications infrastructures of the Smart Grid. It can test different technical aspects like Ethernet, IP, PTP, GbE, IRIG-B, T1/E1, G703, C37.94, and GOOSE, SV, and MMS protocols.

With Zeus, one-way-delay tests are possible at all interfaces, and it can also use GPS to help. Additionally, Zeus has programmable filters that can capture live data traffic at wire-speed. This means that you can analyze different protocols like GOOSE, SV, MMS, and more, and even save the data in PCAP format.

Key Features and Benefits

  • Battery Operated (up to 12 hours of continuous work)
  • Small, smart and very fast
  • SoftLEDs © all events at a glance
  • Landscape ergonomy / Weight: 1.9 kg
  • Built-in clock reference inputs and outputs signals
  • VNC remote control for centralized operation
  • 100% compact
  • Independent from PC or any external hardware/software
  • BNC + RJ-45: E1 / T1 balanced / unbalanced testing
  • Dual SFP ports for GbE
  • Built in clock reference inputs and outputs, including GNSS
  • Double RJ-45 ports: 10 / 100 / 1000 Mb/s Ethernet
  • Complete set of Serial Communications
  • Full C37.94 support
  • Round Trip and One Way Delay in all interfaces (GPS assisted)
  • MicroSD card to capture and save data
